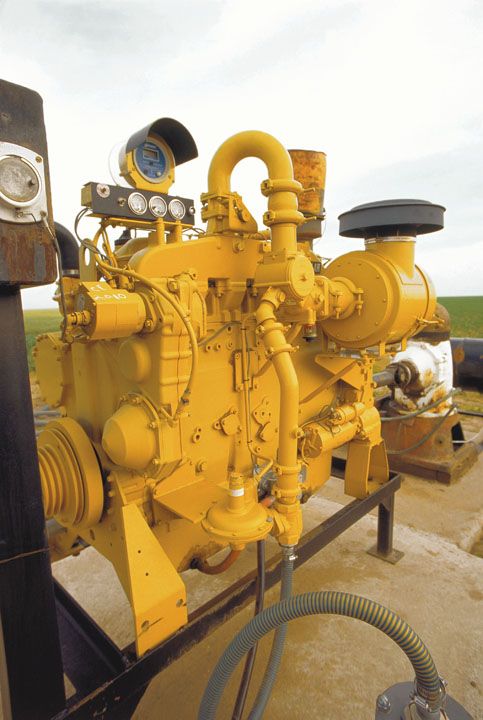

Exterior View
Product Specs
Power Rating
- Maximum Power
- 465 hp
- Maximum Torque
- 1602 lb-ft @ 1350 rpm
- Rated Speed
- 1800-2100 rpm
- Minimum Power
- 375 hp
Emission Standards
- Emissions
- Non-Certified
Engine Dimensions - Approximate
- Length
- 65.4 in
- Width
- 35.7 in
- Height
- 52.6 in
- Weight - Net Dry - Basic Operating Engine Without Optional Attachments
- 2866 lb
General
- Engine Configuration
- Inline 6, 4-Stroke-Cycle Diesel
- Bore
- 5.4 in
- Stroke
- 6.5 in
- Displacement
- 893.4 in³
- Compression Ratio
- 14.5:1
- Aspiration
- Turbocharged Aftercooled
- Rotation from Flywheel End
- Counterclockwise
Standard Equipment
-
- Air Inlet System
-
- Air cleaner. Regular duty, dry, panel type with service indicators, turbocharger, jacket water aftercooled.
-
- Control System
-
- Hydra-mechanical governor
-
- Cooling System
-
- Thermostats and housing
- Jacket water pump, centrifugal
-
- Exhaust System
-
- Exhaust manifold, dry
- Exhaust elbow, dry, 152 mm (6 in), 4 bolt flange
-
- Flywheels And Flywheel Housing
-
- SAE No. 1 flywheel
- SAE No. 1 flywheel housing
- SAE standard rotation
-
- Fuel System
-
- Fuel filter, LH
- Fuel transfer pump
- Fuel priming pump
-
- Instrumentation
-
- Instrument panel, LH
- Engine oil pressure gauge
- Fuel pressure gauge
- Water temperature gauge
- Service meter
-
- Lube System
-
- Crankcase breather
- Oil cooler
- Lube oil filter
- Oil filler in valve cover and dipstick, both RH
- Rear sump oil pan
-
- Mounting System
-
- Supports
-
- General
-
- Vibration damper
- Lifting eyes
- Paint: Caterpillar yellow, with optional colors available at request
