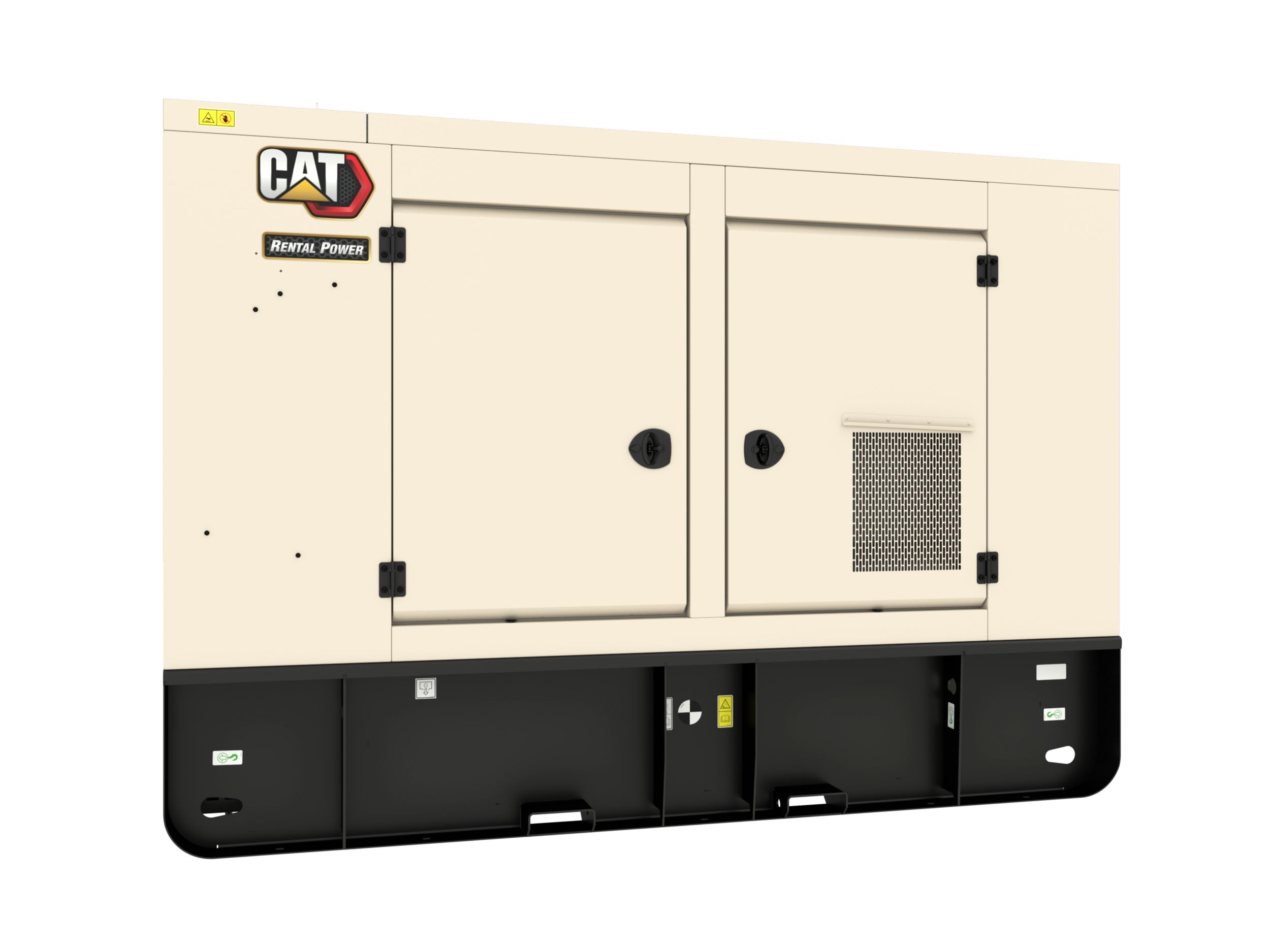

Exterior View
Product Specs
Generator Set
- Frequency
- 50/60 Hz
- Voltage
- 220 - 480 V
Engine
- Engine
- Cat® C4.4
- Fuel
- Diesel
- Emissions
- EU Stage V
Dimensions
- Width
- 45 in
- Height
- 82 in
- Length
- 117 in
- Weight - With Lube Oil and Coolant
- 4579 lb
Noise rating (with enclosure)
- Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)
- 78.9 dB(A)
Standard Equipment
-
- Cat® C4.4 Diesel Engine
-
- Twin Turbocharged, air-to-air aftercooler
- Electronic ECM controlled
-
- After Treatment
-
- Engine Mounted Clean Emissions Module (CEM)
- Diesel Emissions Fluid (DEF)
-
- Alternator
-
- LC3114F Frame
- Coastal insulation protection
-
- Control Panel
-
- XQCP set mounted digital controller
-
- Air Filter
-
- Air cleaner, cyclonic/paper with dust cup and serviceindicator
-
- Cat Connect Remote Monitoring
-
- Provides package monitoring and management
-
- Cooling System
-
- Package mounted radiator with vertical air discharge. Filled from factory
- High ambient performance
-
- Charging / Starting System
-
- 12V, heavy duty charging alternator with integral regulator and belt guards
-
- Fuel System
-
- 24 hour dual wall fuel tank with internal fuel fill
- Engine mounted primary and secondary fuel filter
-
- Distribution
-
- Separate robust steel enclosures for control & distribution sections
- 4 pole, 200A main circuit breaker
-
- Enclosure
-
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
- Sealed quarter-turn compression latches with key orpadlock capabilities
-
- Lube Oil
-
- On engine primary and secondary oil filters. Filled from factory
-
- General
-
- Factory tested and inspected
- Full manufacturer's warranty
Attachments
-
- Distribution
-
- CE socket box with integrated MCB & RCBO protection
-
- Fuel Option Pack
-
- Inboard mounted 3-way valve for external fuel connection, electronic fuel gauge and Bund Level Sender
-
- Drains Option Pack
-
- Oil and coolant drains piped to base frame
